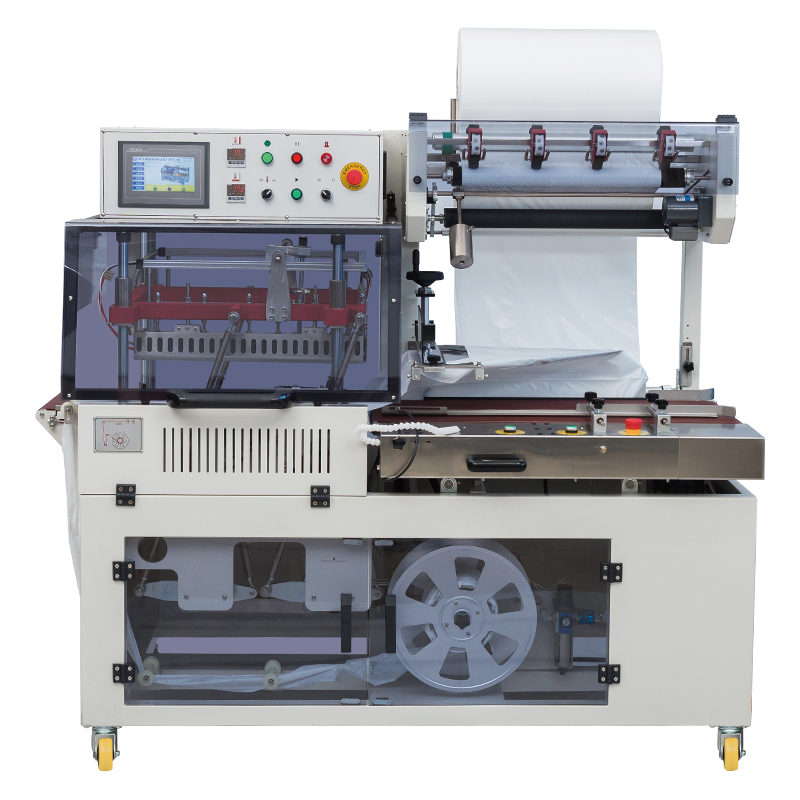

DQL5545PEG
Automatic L-Sealer
An automatic L-sealer for sealing and cutting compatible PE film. Check product length, width and height against the sealing limits. Pair it with a suitable shrink tunnel when a heat-shrink finish is required.
- Process
- Sealing & cutting
- Operation
- Automatic
- Format
- Conveyor
01 / The machine
Built around
your process.
An automatic L-sealer for sealing and cutting compatible PE film. Check product length, width and height against the sealing limits. Pair it with a suitable shrink tunnel when a heat-shrink finish is required.
Applications & packaging
- Boxed products
- PE film overwrapping
Operation
Automatic · Conveyor
Selection
Wrapped product length, width, height and weight
02 / In operation
How it works.
From product preparation
to the next packaging step.
- 01
Prepare the pack
Check the actual package and match it to the machine setup.
- 02
Set up the station
Adjust guides and operating settings for the selected package.
- 03
Check the result
Inspect sample packs before starting the production batch.
03 / Technical details
The details.
At a glance.
DQL5545PEG
| Power supply | 220 V / 50 Hz |
|---|---|
| Film type | PE |
| Max. sealing area | 550 × 450 mm |
| Max. pack height | 140 mm |
| Pack size limits | L+2H ≤ 550 / W+2H ≤ 450 mm |
| Machine dimensions | 1760 × 940 × 1580 mm |
Pack dimensions must meet both sealing-area and height limits. Heat shrinking is a separate downstream stage.
Bring these details.
- 01Wrapped product length, width, height and weight
- 02Film type, thickness and product heat sensitivity
- 03Target output and upstream/downstream process
What information should I provide?
Send wrapped product length, width, height and weight; film type, thickness and product heat sensitivity; target output and upstream/downstream process.
How is the setup selected?
The setup is matched to actual packaging samples and your production requirements.
