Packaging format
Prewrapped boxes

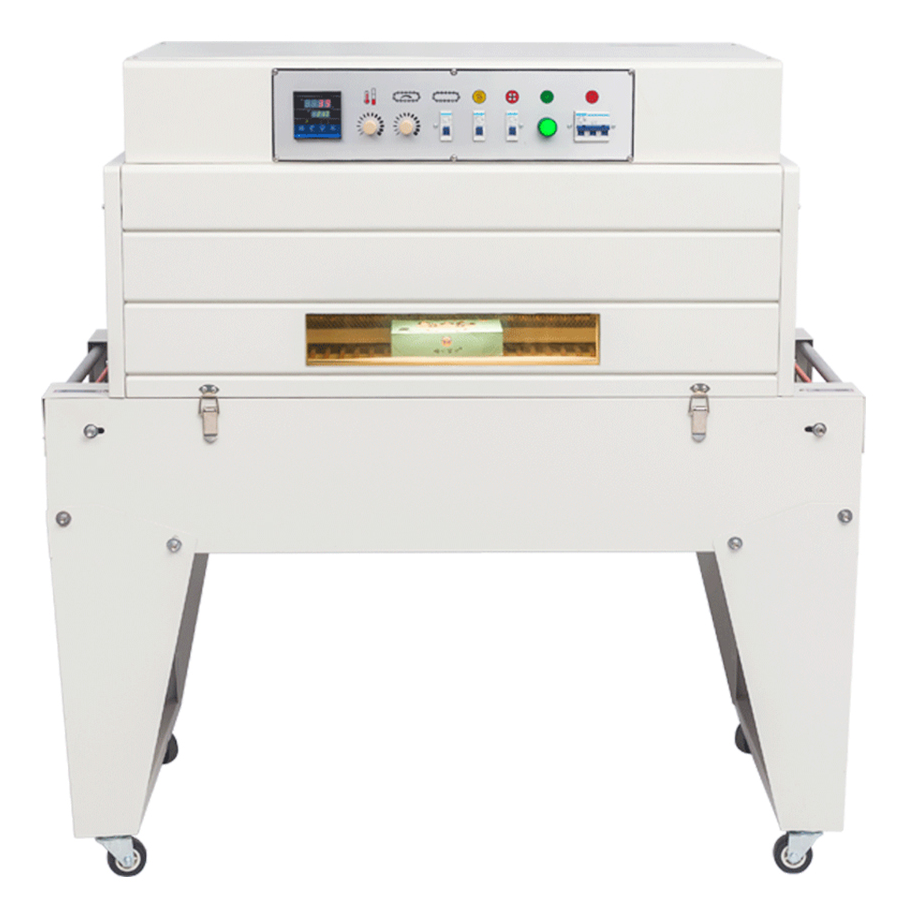

DSA4020
Shrink Tunnel
A conveyor shrink tunnel for products already wrapped and sealed in compatible shrink film. The heating stage shrinks the film around the package. Check wrapped dimensions, film type, weight and product heat sensitivity when selecting the process.
- Process
- Shrinking
- Operation
- Automatic
- Format
- Conveyor
01 / The machine
Built around
your process.
A conveyor shrink tunnel for products already wrapped and sealed in compatible shrink film. The heating stage shrinks the film around the package. Check wrapped dimensions, film type, weight and product heat sensitivity when selecting the process.
Applications & packaging
- Prewrapped boxes
- Compatible shrink-film packs
Operation
Automatic · Conveyor
Selection
Wrapped package dimensions and weight
02 / In operation
How it works.
From product preparation
to the next packaging step.
- 01
Match the package
Check the product and packaging samples against the selected equipment configuration.
- 02
Set up the station
Adjust the machine for the confirmed package and operating conditions.
- 03
Check the result
Run sample packs and inspect the result before starting the production batch.
03 / Technical details
The details.
At a glance.
DSA4020
| Power supply | 220 V / 50–60 Hz |
|---|---|
| Rated power | 7.5 kW |
| Conveyor speed | 0–10 m/min |
| Tunnel L×W×H | 800 × 400 × 200 mm |
| Conveyor load | 5 kg |
| Film thickness | 0.01–0.04 mm |
Tunnel dimensions are not the maximum usable pack dimensions. Products must be wrapped and sealed before entering the tunnel.
Bring these details.
- 01Wrapped package dimensions and weight
- 02Film type and thickness
- 03Product heat sensitivity and target output
What should I send for equipment selection?
Send wrapped package dimensions and weight; film type and thickness; product heat sensitivity and target output.
How is the final configuration selected?
The setup is matched to your actual product and packaging samples, output requirements and available utilities.
