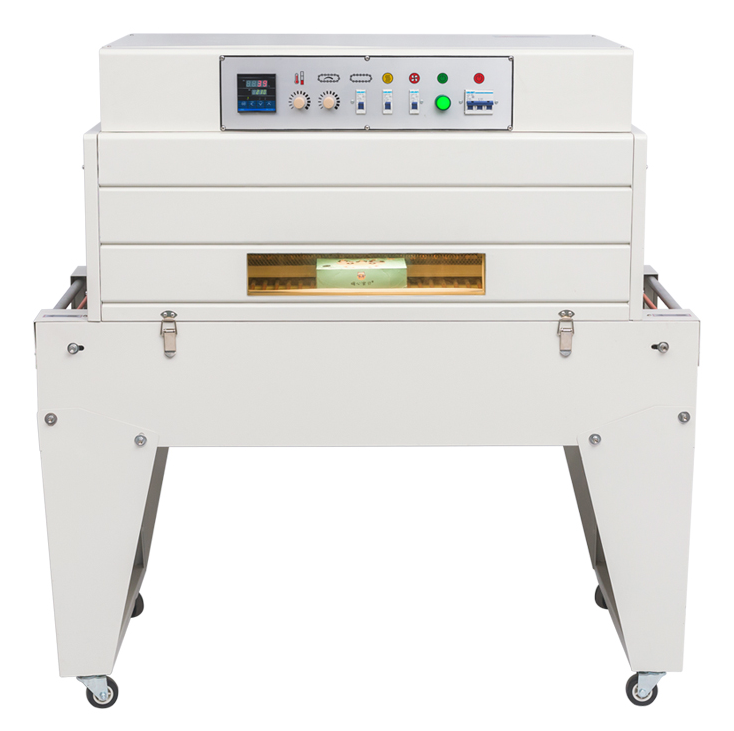

DSA4525
Shrink Tunnel
A conveyor shrink tunnel for products that have already been film-wrapped and sealed. The heating tunnel shrinks compatible film around each pack. Select conveying and heating settings for the wrapped dimensions, weight and film material.
- Process
- Shrinking
- Operation
- Automatic
- Format
- Conveyor
01 / The machine
Built around
your process.
A conveyor shrink tunnel for products that have already been film-wrapped and sealed. The heating tunnel shrinks compatible film around each pack. Select conveying and heating settings for the wrapped dimensions, weight and film material.
Applications & packaging
- Prewrapped boxes
- Compatible shrink-film packs
Operation
Automatic · Conveyor
Selection
Wrapped product length, width, height and weight
02 / In operation
How it works.
From product preparation
to the next packaging step.
- 01
Prepare the pack
Check the actual package and match it to the machine setup.
- 02
Set up the station
Adjust guides and operating settings for the selected package.
- 03
Check the result
Inspect sample packs before starting the production batch.
03 / Technical details
The details.
At a glance.
DSA4525
| Power supply | 220 V / 50–60 Hz |
|---|---|
| Rated power | 8.5 kW |
| Conveyor speed | 0–10 m/min |
| Tunnel L×W×H | 1000 × 450 × 250 mm |
| Conveyor load | 5 kg |
| Film thickness | 0.01–0.04 mm |
Tunnel dimensions are not maximum usable pack dimensions. Wrap and seal products before entering the tunnel.
Bring these details.
- 01Wrapped product length, width, height and weight
- 02Film type, thickness and product heat sensitivity
- 03Target output and upstream/downstream process
What information should I provide?
Send wrapped product length, width, height and weight; film type, thickness and product heat sensitivity; target output and upstream/downstream process.
How is the setup selected?
The setup is matched to actual packaging samples and your production requirements.
