Packaging
Corrugated cartons

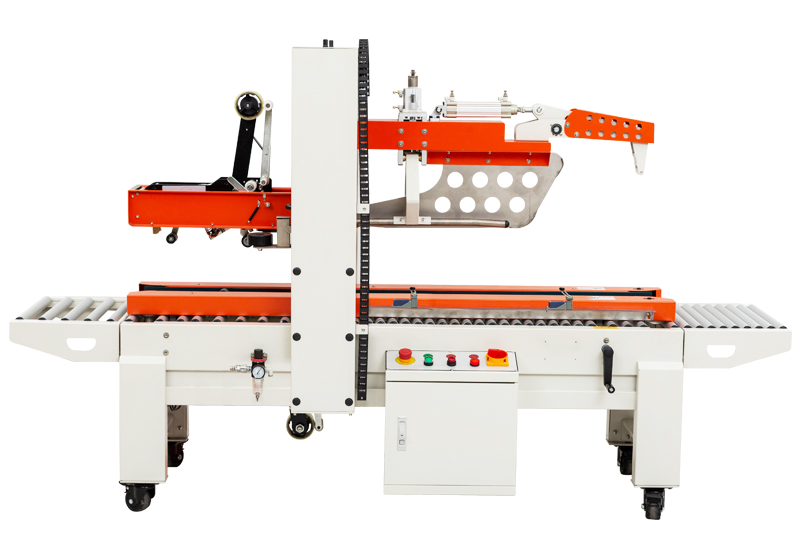

FXJ4030ZX
Automatic Flap-Folding Carton Sealer
An automatic carton sealer that combines flap folding with tape sealing. Set the guides and sealing station for the carton length, width and height. Suitable for carton-packing processes that require a combined folding and sealing stage.
- Process
- Carton sealing
- Operation
- Automatic
- Format
- Conveyor
01 / The machine
Built around
your process.
An automatic carton sealer that combines flap folding with tape sealing. Set the guides and sealing station for the carton length, width and height. Suitable for carton-packing processes that require a combined folding and sealing stage.
Applications & packaging
- Corrugated cartons
- Flap-folding and taping processes
Operation
Automatic · Conveyor
Selection
Carton length, width, height and weight
02 / In operation
How it works.
From product preparation
to the next packaging step.
- 01
Prepare the pack
Check the actual package and match it to the machine setup.
- 02
Set up the station
Adjust guides and operating settings for the selected package.
- 03
Check the result
Inspect sample packs before starting the production batch.
03 / Technical details
The details.
At a glance.
FXJ4030ZX
| Power supply | 220 V / 50 Hz |
|---|---|
| Rated power | 260 W |
| Conveyor speed | 18 m/min |
| Tape width | 30 / 48 mm |
| Max. carton W×H | 300 × 400 mm |
| Min. carton L×W×H | 130 × 80 × 90 mm |
Conveyor speed is not finished cartons per minute; output depends on carton length, spacing and operating conditions.
Bring these details.
- 01Carton length, width, height and weight
- 02Carton construction, tape width and sealing positions
- 03Target output and upstream/downstream equipment
What information should I provide?
Send carton length, width, height and weight; carton construction, tape width and sealing positions; target output and upstream/downstream equipment.
How is the setup selected?
The setup is matched to actual packaging samples and your production requirements.
