In this guide
Lotion pumps, soap dispensers and trigger sprayers add several questions to a capping application. Can the tool reach the threaded collar? Will the head clear the tooling? Who inserts the dip tube? A cap diameter alone rarely describes the job.
Start with three checks: access to the threaded collar, responsibility for inserting and placing the closure, and agreed acceptance tests. Use those answers to compare a benchtop station, an inline tightener or a complete automatic closure-handling system.
01 / Identify the collar the tool needs to turn
A dispensing closure is an assembly. Distinguish the threaded collar that secures it to the bottle from the actuator, nozzle and locking mechanism above it. Establish which component must turn and which parts need clearance before choosing the tightening method.

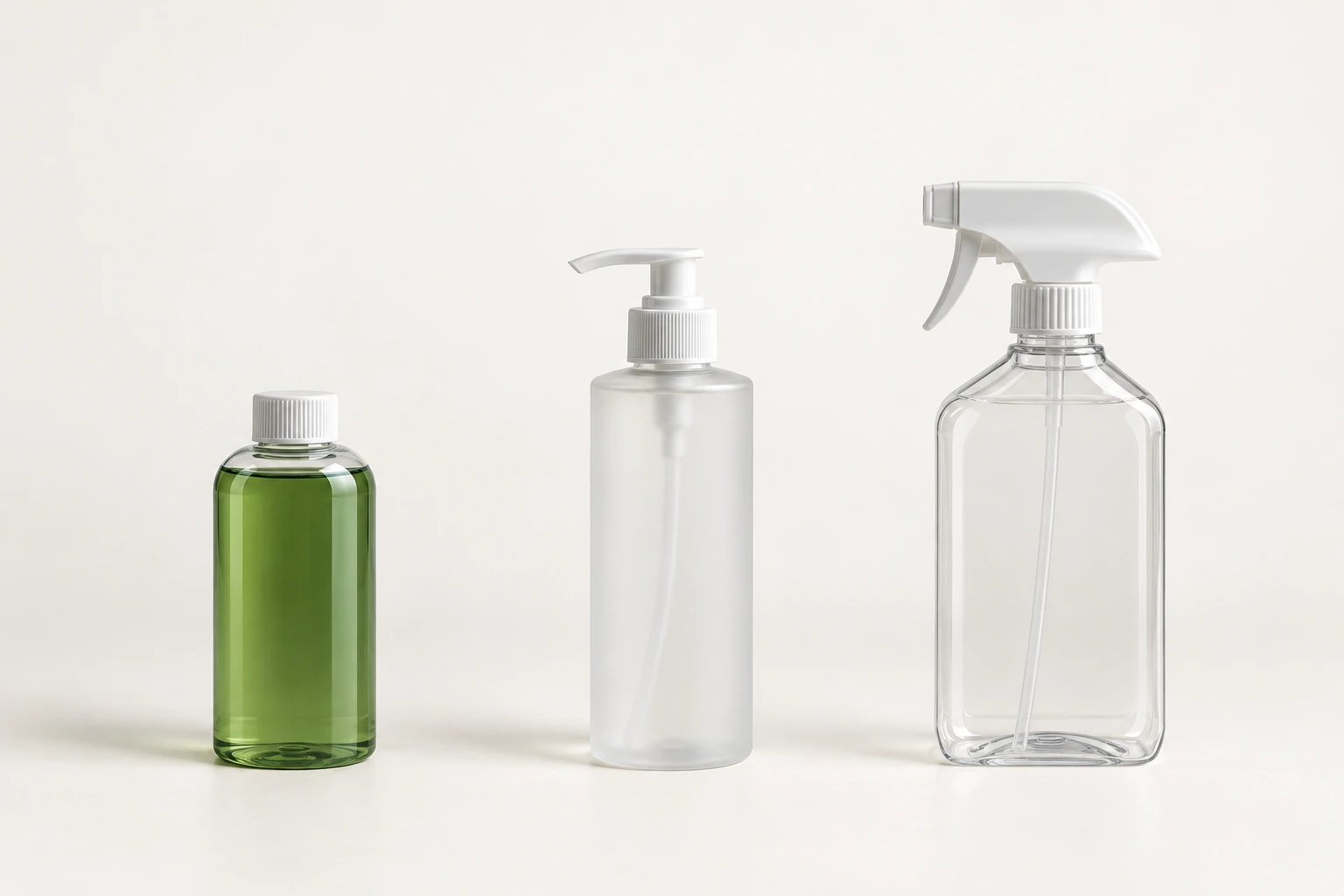

| Closure type | First checks |
|---|---|
| Ordinary screw cap | Accessible outside or top surface, cap height, texture and susceptibility to marking. |
| Lotion or soap pump | Accessible collar height, nozzle projection, shipping-lock position and clearance around the actuator. |
| Trigger sprayer | Head and trigger envelope, space around the collar, bottle support and dip-tube insertion. |
Two pumps with the same collar diameter may have different nozzle lengths, collar heights or upper profiles. Send front, side and top views, including a close-up of the collar. A product name or a single overall dimension leaves too much unresolved.
02 / Separate tightening from automatic placement
A common semi-automatic arrangement starts with an operator inserting the dip tube and placing the closure, then positioning the bottle for tightening. Confirm whether threads must be started manually, how the cycle is triggered and how the finished bottle is removed for the selected machine.
| Arrangement | Scope to specify |
|---|---|
| Manual placement + benchtop tightening | Who handles insertion, placement, positioning and removal; how the tool clears the dispensing head. |
| Manual placement + inline tightening | The loading position, bottle stability during transfer and the interface with the next operation. |
| Automatic sorting, feeding, placing and tightening | Which operations are included, whether orientation and tube guidance are needed, and format-change parts. |
“Automatic capper” does not by itself establish that a system can sort pump assemblies, guide their tubes into bottles and place them. Request an itemized scope and a continuous demonstration of the proposed sequence.
8-second demonstration: automatic pump capping
Actual automatic pump-capping station showing positioning and tightening; not a demonstration of the YL-P benchtop model.
03 / Measure the package and verify the neck match
| Reference | Information to send |
|---|---|
| A · Overall height | Measure in the open or locked pump state used during capping; also provide bare-bottle height. |
| B · Bottle width | Diameter for a round bottle; width and depth for a flat or rectangular bottle, plus base shape. |
| C · Collar diameter | Measure the collar where the tool may contact it, rather than the maximum width of the dispensing head. |
| D · Accessible height | Mark the usable contact band, showing flanges, steps and obstructions. |
| E · Head envelope | Give maximum projections in front and side views. One two-dimensional sketch cannot establish all clearances. |
Also provide dip-tube length, outside diameter, curvature and the reference point used to measure length. Neck compatibility depends on the thread and sealing geometry as well as diameter. Send matching bottle and closure drawings and physical samples where available.
04 / Trial insertion, bottle support and orientation
Dip tubes: observe the whole placement step
Use the actual tube length and condition. Record any need to straighten the tube, guide it past the neck or correct a tilted closure. For an automated proposal, ask to see insertion itself, rather than only bottles arriving with their closures already in place.
Bottle support: inspect the finished container
Look for rotation, tipping, deformation and contact marks. Test flexible, narrow and shaped bottles in their intended production condition. A successful trial on one empty container does not establish performance with every filled package.
Orientation: name the component and reference
If a nozzle must face the front label, specify whether the requirement concerns the nozzle, the whole trigger assembly or the collar, and define an acceptable angular range. Tightness and orientation are separate acceptance criteria; continuing to tighten is not a default solution to alignment.
05 / Define tightness without assuming more is better
Obtain suitable application requirements from the bottle and closure suppliers. Machine settings, applied torque and subsequently measured removal torque are different quantities. Agree the test method, timing and sample condition before comparing results.
Test with new bottles and closures under representative filled conditions. There is no single torque value for all pump packages. A satisfactory removal-torque reading does not replace leak and dispensing-function checks.
Record thread engagement, visible damage, the agreed torque test, sealing performance, unlocking and dispensing separately. Select the acceptance procedures to match the package and product requirements.
06 / When a benchtop pump capper is worth evaluating
If manual insertion, placement and individual bottle handling suit the workflow, a benchtop station is a useful starting point. The RUIKE YL-P benchtop pump and trigger capper is one option to discuss. Assess actual collar access, head clearance, bottle support and sample performance before selecting the configuration.
Include picking up the bottle, inserting the tube, placing the closure, tightening, removing and inspecting it in the working cycle. Record accepted bottles over a continuous run, operator numbers and manual corrections. A single tightening cycle is not a measure of sustained shift output.
If insertion and placement consume most of the time, faster tightening alone may leave the bottleneck unchanged. For a filling–capping–labeling line, compare container transfer, available space, staffing and format changes as part of the complete arrangement.
07 / Turn the sample trial into an acceptance record
| Trial item | What to record |
|---|---|
| Package coverage | Every planned bottle-and-closure combination, including the least stable bottle or tightest clearance. |
| Continuous handling | An uninterrupted view from bottle pickup or infeed to discharge, with quantity, elapsed time and interruptions. |
| Finished result | Cross-threading, marks, bottle deformation, sealing, opening and dispensing; orientation where specified. |
| Changeover | Required parts, adjustment steps, first-piece checks and time to restore stable operation. |
| Delivery scope | Included tooling and supports, approved package list, utilities and operating instructions. |
Keep approved samples, the configuration list and acceptance procedures with the order. When a bottle, pump or tube changes later, identify what has changed and decide which checks must be repeated.
Common buying questions
Can pumps with the same collar diameter use the same machine?
Diameter alone is insufficient. Compare accessible height, head projection, bottle support and neck compatibility, then check the proposed tools and adjustment range.
Does a pump capper include automatic tube insertion and placement?
Not necessarily. List sorting, orientation, feeding, tube guidance, placement and tightening separately in the quotation scope.
Will the pump nozzle always face the front label after tightening?
Specify the component to align and the acceptable angle. Trial the real package to establish whether the closure design and process can meet sealing, tightness and orientation requirements together.
Should I buy before all bottle formats are settled?
Define the main packages first and share planned additions. Similar appearance does not establish compatibility for a format that has not been evaluated.
Send the bottle, the closure and the working requirements.
Share these details with RUIKE to define the equipment scope and sample-trial priorities. Include front, side and top views and a close-up of the collar.
Product and application: Bottle material, bare height, width/diameter and depth: Pump/trigger reference, open or locked state and overall height: Collar diameter, accessible height and head projections: Matching bottle-neck and closure drawings: Dip-tube length, measurement reference, outside diameter and curvature: Fill condition during capping: Manual placement or automatic sorting, insertion and placement: Nozzle/trigger orientation and acceptance requirements: Batch quantity, working time, operators and changeover frequency: Power, compressed air, country and available space: Available samples and current problems:
