Packaging format
Flowable pastes
G1WG

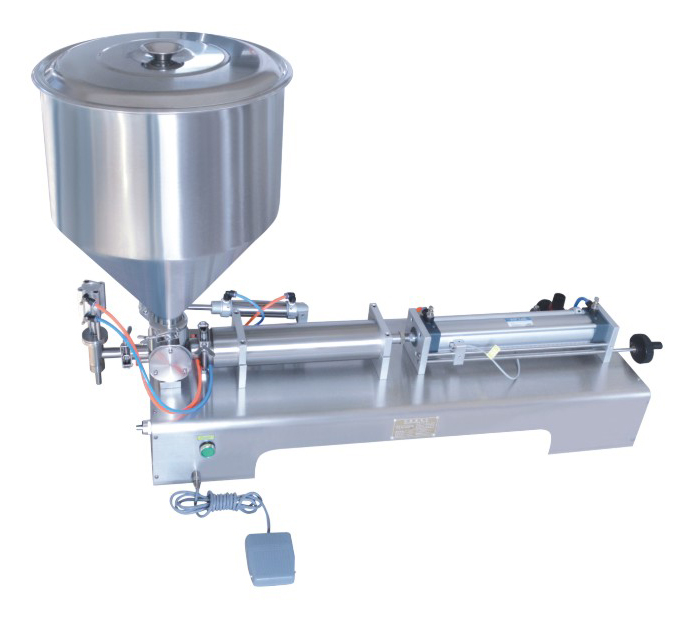

Single-Head Paste Filling Machine
A hopper-fed single-head paste filler with pneumatic metering and foot control. The operator positions each container beneath the outlet. Select the metering configuration around product flow and the required fill quantity.
- Process
- Filling
- Operation
- Semi-automatic
- Format
- Benchtop
01 / The machine
Built around
your process.
A hopper-fed single-head paste filler with pneumatic metering and foot control. The operator positions each container beneath the outlet. Select the metering configuration around product flow and the required fill quantity.
Applications & packaging
- Flowable pastes
- Creams and sauce-type products
Operation
Semi-automatic · Benchtop
Selection
Product, flow behavior and contact-material requirements
02 / In operation
How it works.
From product preparation
to the next packaging step.
- 01
Match the package
Check the product and packaging samples against the selected equipment configuration.
- 02
Set up the station
Adjust the machine for the confirmed package and operating conditions.
- 03
Check the result
Run sample packs and inspect the result before starting the production batch.
03 / Technical details
The details.
At a glance.
G1WG
| Filling speed | 5–25 bottles/min |
|---|---|
| Filling accuracy | ±1% |
| Air pressure | 0.4–0.6 MPa |
| Power supply | AC 220 / 110 V, 50 / 60 Hz |
| Rated power | 20 W |
| Metering ranges available | 10–100 / 30–300 / 50–500 / 100–1,000 / 500–3,000 / 1,000–5,000 ml |
Metering ranges are separate configurations, not one continuous range.
Bring these details.
- 01Product, flow behavior and contact-material requirements
- 02Fill quantity and container dimensions
- 03Target output and available power or compressed air
What should I send for equipment selection?
Send product, flow behavior and contact-material requirements; fill quantity and container dimensions; target output and available power or compressed air.
How is the final configuration selected?
The setup is matched to your actual product and packaging samples, output requirements and available utilities.
