Packaging format
Bottled liquids
LT-R180

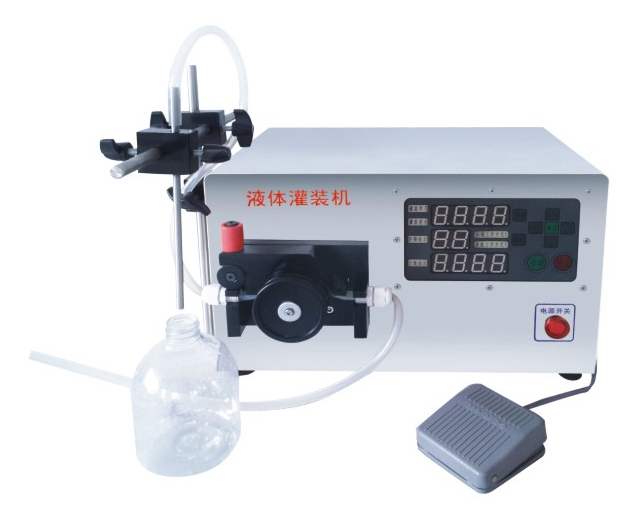

Single-Head Peristaltic Filling Machine
A benchtop single-head peristaltic filler that transfers liquid through tubing. Panel settings and foot control support an operator-fed filling station. Check liquid-to-tubing compatibility, fill volume and required flow before selecting the setup.
- Process
- Filling
- Operation
- Semi-automatic
- Format
- Benchtop
01 / The machine
Built around
your process.
A benchtop single-head peristaltic filler that transfers liquid through tubing. Panel settings and foot control support an operator-fed filling station. Check liquid-to-tubing compatibility, fill volume and required flow before selecting the setup.
Applications & packaging
- Bottled liquids
- Small liquid filling batches
Operation
Semi-automatic · Benchtop
Selection
Product, flow behavior and contact-material requirements
02 / In operation
How it works.
From product preparation
to the next packaging step.
- 01
Match the package
Check the product and packaging samples against the selected equipment configuration.
- 02
Set up the station
Adjust the machine for the confirmed package and operating conditions.
- 03
Check the result
Run sample packs and inspect the result before starting the production batch.
03 / Technical details
The details.
At a glance.
LT-R180
| Filling range | 5–3500 mL |
|---|---|
| Maximum flow | 3.2 L/min |
| Maximum suction lift | 2 m |
| Power supply | AC 220 V |
| Rated power | 30 W |
| Machine weight | 8.5 kg |
Maximum flow is liquid throughput, not finished bottles per minute. Verify filling with the actual liquid and tubing.
Bring these details.
- 01Product, flow behavior and contact-material requirements
- 02Fill quantity and container dimensions
- 03Target output and available power or compressed air
What should I send for equipment selection?
Send product, flow behavior and contact-material requirements; fill quantity and container dimensions; target output and available power or compressed air.
How is the final configuration selected?
The setup is matched to your actual product and packaging samples, output requirements and available utilities.
