Packaging format
Cylindrical bottles and jars

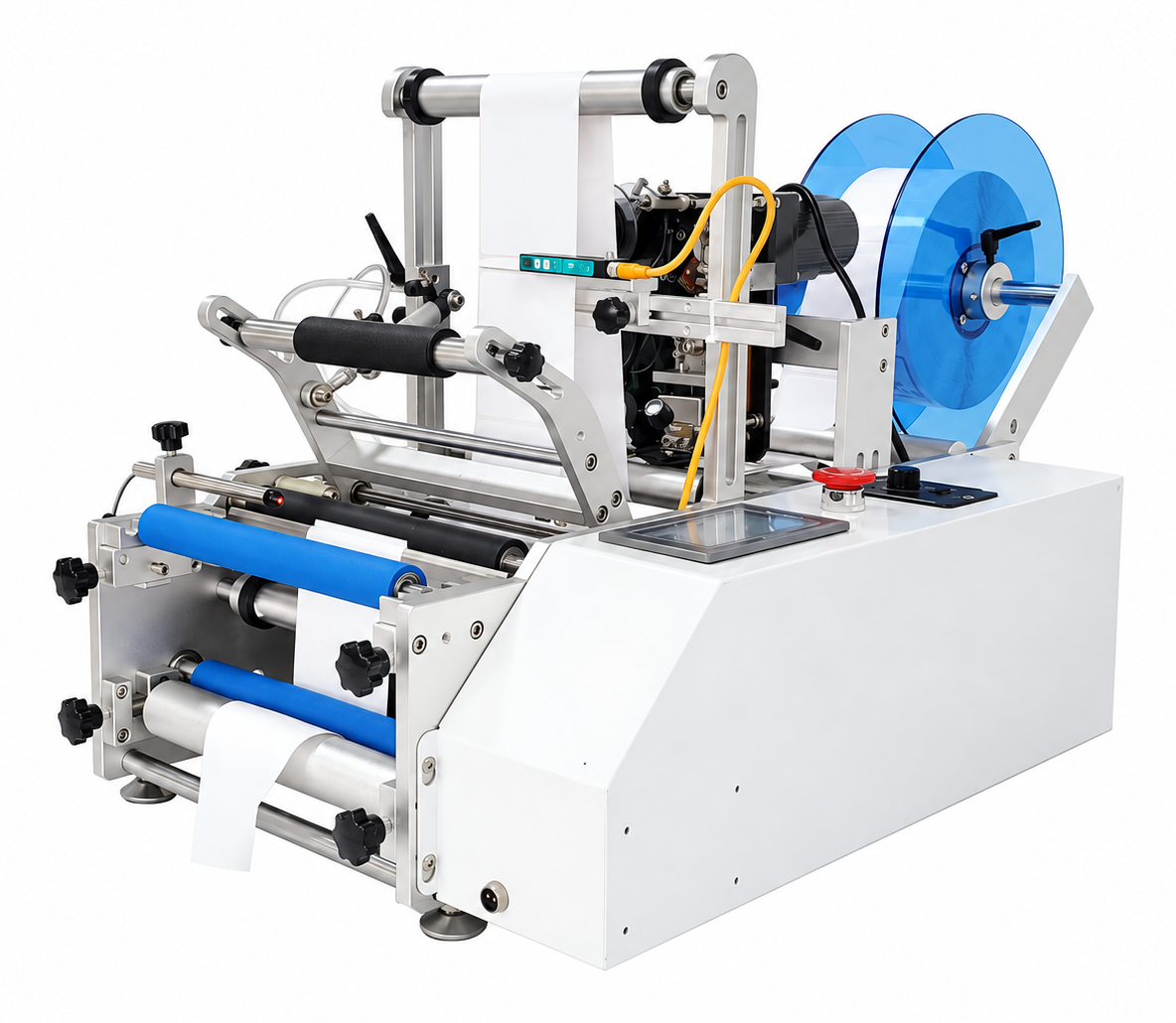

XL-T801
Semi-Automatic Round Bottle Labeling Machine
A semi-automatic labeler for cylindrical containers. The operator positions each bottle while the rolling mechanism applies a self-adhesive label around the body. Bottle diameter, label dimensions and label position define the setup.
- Process
- Labeling
- Operation
- Semi-automatic
- Format
- Benchtop
01 / The machine
Built around
your process.
A semi-automatic labeler for cylindrical containers. The operator positions each bottle while the rolling mechanism applies a self-adhesive label around the body. Bottle diameter, label dimensions and label position define the setup.
Applications & packaging
- Cylindrical bottles and jars
- Self-adhesive roll labels
Operation
Semi-automatic · Benchtop
Selection
Product photos, dimensions and labeling surface
02 / In operation
How it works.
From product preparation
to the next packaging step.
- 01
Match the package
Check the product and packaging samples against the selected equipment configuration.
- 02
Set up the station
Adjust the machine for the confirmed package and operating conditions.
- 03
Check the result
Run sample packs and inspect the result before starting the production batch.
03 / Technical details
The details.
At a glance.
XL-T801
| Labeling speed | 20–30 pcs/min |
|---|---|
| Labeling accuracy | ±0.5 mm |
| Bottle diameter | Ø10–150 mm |
| Label size (L × W) | 20–380 × 20–230 mm |
| Power supply | 220 V / 50 Hz |
| Machine size (L × W × H) | Approx. 950 × 560 × 520 mm |
Labeling speed depends on product dimensions. Stated accuracy excludes product and label tolerances.
Bring these details.
- 01Product photos, dimensions and labeling surface
- 02Label dimensions, material and roll direction
- 03Label position and target output
What should I send for equipment selection?
Send product photos, dimensions and labeling surface; label dimensions, material and roll direction; label position and target output.
How is the final configuration selected?
The setup is matched to your actual product and packaging samples, output requirements and available utilities.
