Packaging
Corrugated cartons

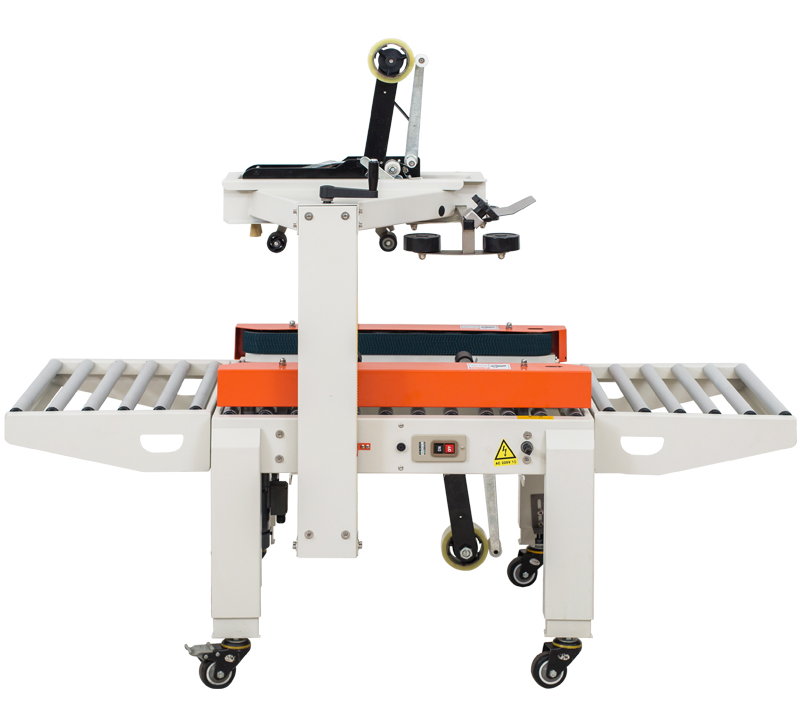

FXC5050
Semi-Automatic Carton Sealer
A semi-automatic tape carton sealer. The operator folds the carton flaps and feeds the carton into the conveying and taping station. Adjust the setup for the carton width, height and tape specification.
- Process
- Carton sealing
- Operation
- Semi-automatic
- Format
- Conveyor
01 / The machine
Built around
your process.
A semi-automatic tape carton sealer. The operator folds the carton flaps and feeds the carton into the conveying and taping station. Adjust the setup for the carton width, height and tape specification.
Applications & packaging
- Corrugated cartons
- Manually folded carton flaps
Operation
Semi-automatic · Conveyor
Selection
Carton length, width, height and weight
02 / In operation
How it works.
From product preparation
to the next packaging step.
- 01
Prepare the pack
Check the actual package and match it to the machine setup.
- 02
Set up the station
Adjust guides and operating settings for the selected package.
- 03
Check the result
Inspect sample packs before starting the production batch.
03 / Technical details
The details.
At a glance.
FXC5050
| Power supply | 220 V / 50 Hz |
|---|---|
| Rated power | 240 W |
| Tape width | 48 / 60 mm |
| Max. carton W×H | 500 × 500 mm |
| Min. carton W×H | 130 × 120 mm |
| Tape type | BOPP / PVC |
Conveyor speed is not finished cartons per minute; output depends on carton length, spacing and operating conditions.
Bring these details.
- 01Carton length, width, height and weight
- 02Carton construction, tape width and sealing positions
- 03Target output and upstream/downstream equipment
What information should I provide?
Send carton length, width, height and weight; carton construction, tape width and sealing positions; target output and upstream/downstream equipment.
How is the setup selected?
The setup is matched to actual packaging samples and your production requirements.
