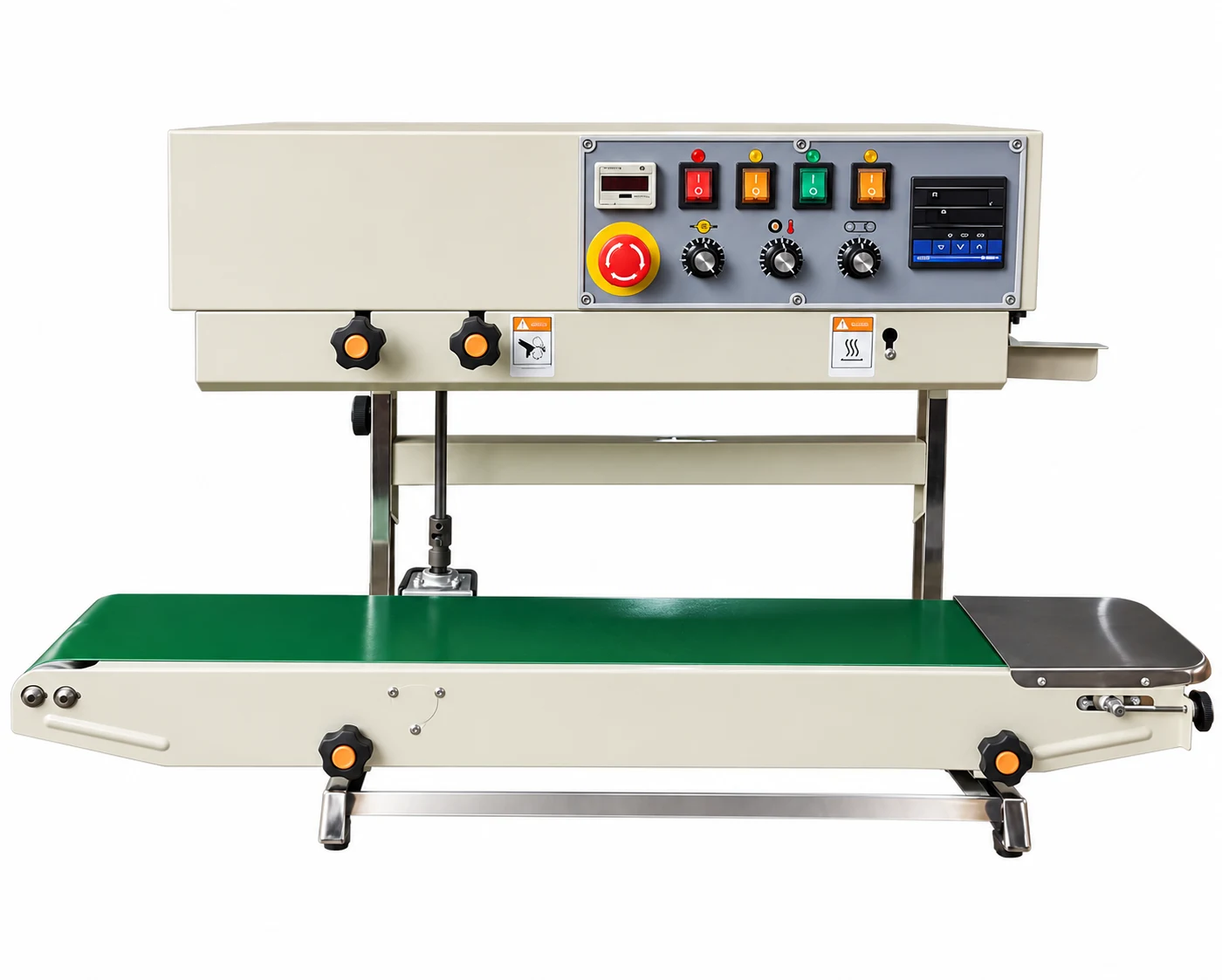

RUIKE / FRD1000C
Coding Band Sealer with Vertical Stand
Combine continuous bag sealing with solid-ink coding and a counter. The illustrated configuration includes a vertical stand, allowing bags to remain upright while their mouths pass through the sealing section.
Request equipment selection ↗
Choose around your bag and process
For packs that need a readable date or batch code alongside the seal. Choose the working orientation around the filled bag, especially when laying it flat could disturb the contents.
Set up the code → Align the bag mouth → Seal and print → Check the pack and count

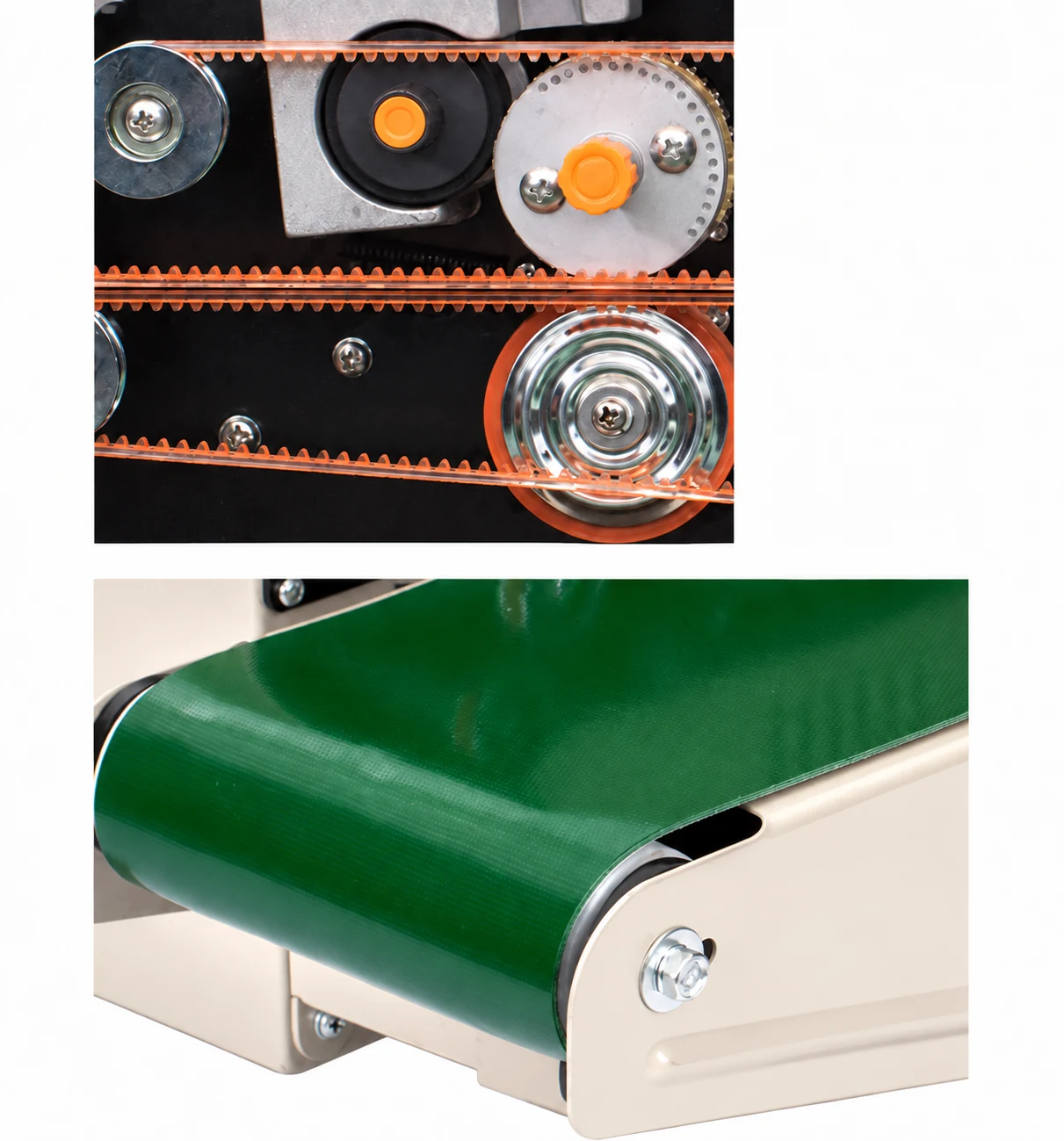

Coding wheel and conveyor belt
The upper view shows the coding-wheel and belt assembly; the lower view shows the conveyor edge. Check print clarity, bag tracking and support with filled sample packs.
Solid-ink coding
The coding assembly applies characters as the bag passes. Agree on the required code content and check the print on the actual film.
Upright bag support
The stand separates the sealing head from the conveyor to accommodate upright packs. Set the working height for the actual bag.
Specifications
| Power supply | 220 V / 50 Hz |
|---|---|
| Rated power | 770 W |
| Belt speed | 0–12 m/min |
| Temperature control range | 0–300 °C |
| Coding method | Solid ink |
| Illustrated configuration | Vertical stand and counter |
Belt speed is not finished bags per minute. Output depends on bag handling, spacing and the heat-sealing settings.
Application questions
Is the vertical stand part of this configuration?
This page describes the stand-and-counter configuration. Specify the required orientation in the inquiry; the stand may be packed separately for transport and assembled on receipt.
What should a sealing trial check?
Use filled bags in the intended film structure. Check bag feeding, seal appearance after cooling and the required seal-strength or leak test for the application. Where coding or gas flushing is involved, include print quality or atmosphere testing in the trial.
Send your bag and packing requirements
Send the bag material and layer structure, dimensions, filled weight, required seal width and target output. Include filled samples and the available electrical supply; add gas or compressed-air details where relevant.
